What You Think Is What You Get: Bridge User Intent and Transfer Function Design through Multimodal Large Language Models

¹China State Key Lab of CAD&CG, Zhejiang University, Hangzhou, China
²Zhejiang University, Hangzhou, China
³Zhejiang University of Finance and Economics, Hangzhou, China

Abstract

Direct Volume Rendering (DVR) is a fundamental technique for visualizing volumetric data, with transfer functions (TFs) playing a crucial role in extracting meaningful visual representations. However, designing effective TFs remains unintuitive due to the semantic gap between users' visual intent and the low-level parameters. Recent approaches leveraging vision-language models have shown promise while still facing a fundamental trilemma involving interaction intuitiveness, computational efficiency, and generalizability. This paper introduces a novel framework that addresses these challenges through three key innovations: (1) an intuitive multimodal interaction paradigm enabling users to express design goals using both natural and visual language, (2) a hybrid system integrating human prior knowledge with visual feedback for automated exploration of the TF space, and (3) a formalized volume rendering quality assessment framework based on vision-language models to provide optimal and generalizable visual feedback. The proposed system empowers both novices and experts to explore and customize volume visualizations efficiently. We validate our approach through comprehensive experiments and a detailed case study.

Method Overview

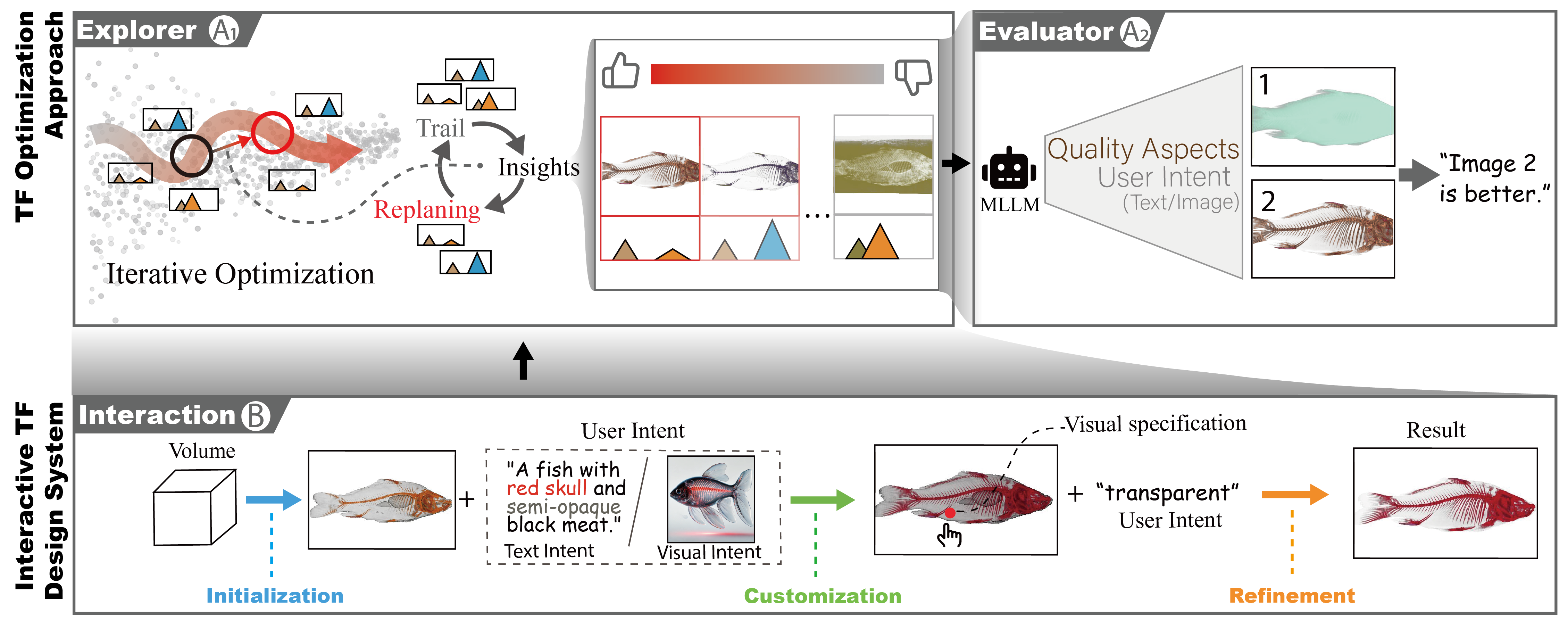

Our WYTWYG framework presents an intent-driven volume visualization approach that effectively bridges user intent with transfer function design. Our methodology consists of two key components: (A) a transfer function optimization approach that combines (A₁) an evolution-based explorer following the Trial-Insight-Replanning optimization formulation to iteratively generate and refine transfer functions with adaptive replanning capabilities, and (A₂) an MLLM-based evaluator that assesses visualizations according to both formal quality metrics and user intent alignment. (B) Our interactive transfer function design system implements a three-stage interaction workflow of initialization-customization-refinement, enabling users to express their visualization intentions through natural text descriptions or reference images while progressively refining results to achieve desired outcomes.

Results

Text-guided Results

Image-guided Results

Examples of transfer functions designed using our approach. The first row showcases cases where design intent is expressed through text. Users input text descriptions and our approach automatically designs transfer functions to achieve high-quality volume rendering results corresponding to these descriptions. The second row demonstrates cases where design intent is conveyed through images. When users cannot clearly articulate their ideas verbally, they can directly provide reference images to express their intent in visual form. In each example of the second row, the small image in the bottom right corner represents the user intent in the form of a reference image. Reference images for (A) and (B) are from other works, (C) uses the rendered image from the third example in the first row, and (D) utilizes Vincent van Gogh's "The Starry Night."

Evaluation

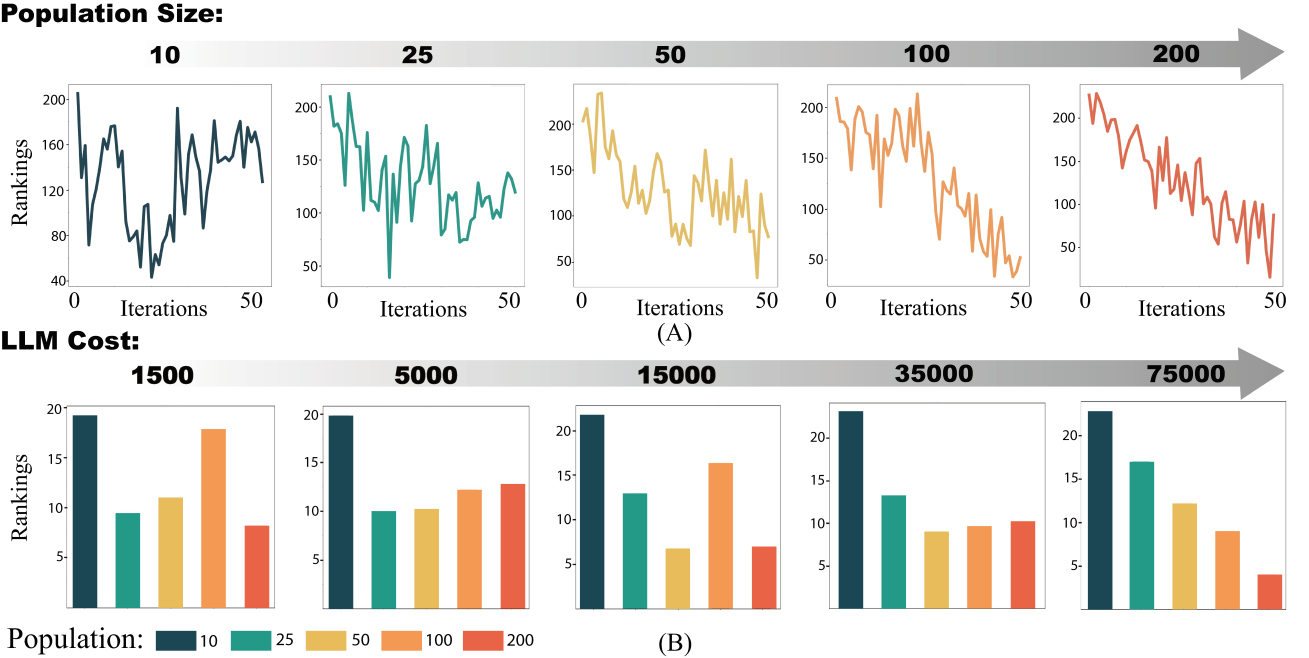

Analysis of evolutionary algorithm parameters on transfer function optimization. (A) Average rankings over iterations for different population sizes (10-200), showing that larger populations achieve more stable improvements with continued iterations while smaller populations show early rapid gains but unstable convergence. (B) Comparison of optimization effectiveness across different computational budgets (measured by LLM API calls), demonstrating that medium-small populations (25-50) perform better under limited resources, while larger populations (100-200) achieve superior results when computational resources are abundant.

BibTeX

@article{wang2025whatyouthink, title = {What You Think Is What You Get: Bridge User Intent and Transfer Function Design through Multimodal Large Language Models}, author = {Wang, Yiyao and Pan, Bo and Wang, Ke and Liu, Han and Mao, Jinyuan and Liu, Yuxin and Zhu, Minfeng and Zhang, Bo and Chen, Weifeng and Huang, Xiuqi and Chen, Wei}, year = {2025}, publisher = {arXiv}, url = {https://wyysteelhead.github.io/TFEvolve.github.io/} }
